Automatic Compact Band Filter

COMPACT BAND FILTERS

Compact Band Filter is designed to filter ferrous and non-ferrous solid particles from liquid with high degree of purification using paper as filter media to enhance life of liquid and protect surface finish of products. Compact Band Filter works both with water base emulsion coolant as and oil(neat oil).MOC of Compact Band Filter is mild steel, SS-304 and SS-316.

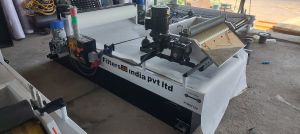

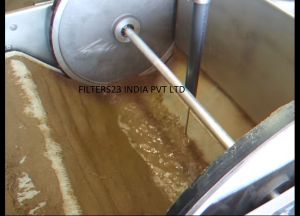

The fluid with dirt is passed to compact band filter through inlet pipe.  Float actuated drives motion and indexes dirty filter paper.

A compact band filtration system is a type of filtration system designed to efficiently remove impurities, particles, or contaminants from a fluid, typically a liquid, within a specific band or range of particle sizes. These systems are commonly used in industrial and commercial applications to ensure the quality and cleanliness of fluids in a space-saving and cost-effective manner.

General Description:

Transfer pump is fitted on Dirty coolant tank to supply the coolant to the filtration system. Operation logic of Transfer Pump is based on the Level Indicators on Dirty and Clean tanks.

Once the filtration system is switched ON, Transfer pump is started based on high level in Dirty tank. Transfer Pump is cut off if coolant level goes low level in dirty tank or coolant level goes high level of clean tank.

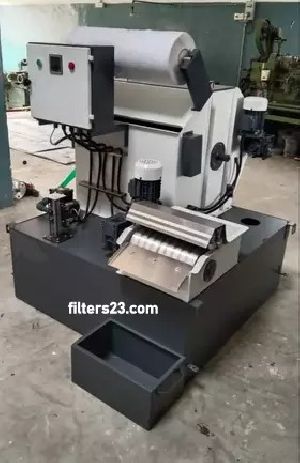

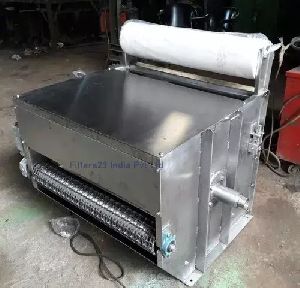

Compact Band Filter is placed on top of Clean coolant tank. Compact band filter uses paper filter to remove impurities from the coolant and filtered coolant gets collected in Clean tank.

Supply Pump is mounted on the Clean tank of filtration system. Coolant from Clean tank is transferred to machine using this pump.

This Supply Pump is started based on the signal from the machine. Supply Pump is switched off if coolant level goes low in clean tank.

Key features and components of a compact band filtration system may include:

Filter Media: The heart of any filtration system is the filter media, which can be made from various materials such as paper, fabric, metal, or synthetic materials. The choice of filter media depends on the type and size of contaminants to be removed.

Filter Element: Compact band filtration systems typically use filter elements that are designed to trap particles within a specific size range. These filter elements can come in different shapes and configurations, including cartridges, bags, or screens.

Inlet and Outlet Connections: These systems have inlet and outlet connections to allow the fluid to enter and exit the filtration system. These connections are typically designed for easy integration into existing pipelines or fluid systems.

Control System: Advanced filtration systems may incorporate a control system to automate filtration processes, monitor filter performance, and trigger cleaning cycles as needed.

Size and Portability: Compact band filtration systems are designed to take up minimal space while still providing effective filtration. This is especially important in situations where space is limited or where mobility is required.

Application-Specific Design: These filtration systems can be customized to meet the specific requirements of different industries and applications, including oil and gas, automotive, food and beverage, pharmaceuticals, and more.

Maintenance and Serviceability: Easy access for maintenance and replacement of filter elements is a crucial consideration in the design of compact band filtration systems to minimize downtime and maintenance costs.

Features :

Suitable for fine filtration.

Filtration capacity.

Very low maintenance.

Totally automatic operation.

Very compact design for individual machine.

Can be customized to suit your requirement.

Filtration capacity: 10 lpm to 3000 lpm

Advantages :

Increase tool life

Increase surface finish of components.

Extending coolant life

Reduces hazards waste

Cleaner working environment

Reduces machine down time

Increased machine output.

Application:-

Bearing industry.

Auto component manufacturers.

Automobile manufacturers.

Cold Rolling mill.

Waste water treatment plants.

Food processing.
