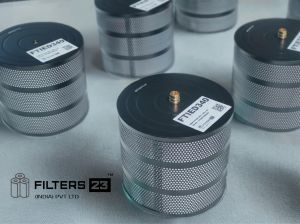

EDM Filters

EDM filter elements are crucial components in electrical discharge machining (EDM) systems. In EDM, a controlled electrical discharge is used to erode material from a workpiece, creating the desired shape or feature. During this process, dielectric fluid is often used to facilitate the sparking and to flush away debris.

The filter elements in an EDM system serve to purify this dielectric fluid, ensuring that it remains clean and free of contaminants. This is vital for maintaining the efficiency and accuracy of the EDM process, as contaminants can interfere with the sparking and eroding action, leading to poor surface finish, dimensional inaccuracies, and increased tool wear.

Filter elements in an EDM system typically consist of materials such as porous ceramics, metal meshes, or synthetic fibers. These materials are chosen for their ability to effectively trap contaminants while allowing the dielectric fluid to pass through. Over time, as the filter elements become saturated with contaminants, they need to be replaced or cleaned to maintain optimal filtration performance.

Regular maintenance of EDM filter elements is essential for ensuring the longevity and reliability of the EDM system, as well as the quality of the machined parts.
