Products

Big Bay (tramp oil separator)   Filters23 India Pvt Ltd `s tramp oil separator, also known as an oil skimmer or oil separator, is a device used in industrial settings to remove unwanted oils, such as tramp oil, from coolant or wastewater. Tramp oil is oil that contaminates machine coolant, typically in metalworking or machining processes. It can come from various sources, including leaking hydraulic systems, lubricants, or residues from machining operations. Removing tramp oil is essential to maintain the quality and effectiveness of coolants and prevent issues like bacterial growth, reduced tool life, and poor surface finish in machining operations.   Here's how a tramp oil separator typically works:   Skimming Mechanism: Tramp oil separators are equipped with a skimming mechanism that comes into contact with the contaminated liquid. The skimming mechanism is designed to be selective, picking up and removing the floating tramp oil while leaving the coolant or wastewater behind.   Floating Oil Collection: As the skimming mechanism operates, it collects the tramp oil that naturally floats on the surface of the liquid. This oil can be in the form of a thin film or droplets.   Separation: Once collected, the tramp oil is separated from the liquid coolant or wastewater. This separation can occur through various means, depending on the design of the tramp oil separator. Common separation methods include gravity separation, coalescence, or the use of special materials that repel water but attract oil.   Oil Collection and Disposal: The separated tramp oil is typically directed into a collection container or reservoir for later disposal or recycling. Some tramp oil separators can automatically pump the collected oil to a separate storage tank.   Cleaned Liquid: The cleaned coolant or wastewater, now free of tramp oil, can be returned to the machining process or discharged as needed.   Key features and benefits of tramp oil separators include:   Improved Coolant Quality: By removing tramp oil, these separators help maintain the integrity of coolant, which is critical for machining processes' performance and tool life.   Reduced Environmental Impact: Proper disposal or recycling of the collected tramp oil minimizes environmental contamination.   Cost Savings: Longer coolant life and reduced tool wear translate into cost savings for maintenance and replacement.   Ease of Maintenance: Tramp oil separators are generally easy to maintain, with minimal downtime for cleaning and servicing.   Tramp oil separators come in various sizes and configurations to suit different industrial applications and coolant systems. The choice of a specific tramp oil separator depends on factors such as the volume of coolant, type of contaminants, and the desired level of automation for oil removal.

Brand Name : Filters23,filters23

Color : Black, Grey, Silver, White

Condition : New

Application : Industrial Use

Certification : CE Certified, ISO 9001:2008, ROSH Certified

Type : Oil Water Separators, Oil Water Seprator

Weight : 100-1000kg

Structure : Oil Mist Cartage

Warranty : 1yr

After-Sales Service Provided : Filters23

Country of Origin : India

FILTERS23 INDIA Designed  small belt-type oil skimmer is a device designed to remove oil and other hydrophobic liquids from the surface of water or other liquids. It's commonly used in industrial and environmental applications to prevent oil contamination in bodies of water, such as ponds, lakes, or industrial tanks. Here are some details about small belt-type oil skimmers:   Basic Principle: Small belt-type oil skimmers work on the principle of utilizing a moving belt to pick up oil or other floating contaminants from the surface of water. The belt is specially designed to attract and collect oils and grease while repelling water.   Components: A typical small belt-type oil skimmer consists of the following components:   Belt: The heart of the skimmer is the continuous loop of material, usually made of materials like oleophilic (oil-attracting) material or synthetic materials specifically designed for this purpose.     Wiper Blades: To effectively remove collected oil from the belt, wiper blades or scrapers are employed. These blades scrape the oil off the belt into a collection container.   Oil Collection Container: The collected oil is deposited into a separate container, which can be easily removed and emptied.   Installation: Small belt-type oil skimmers can be installed in various settings, including wastewater treatment plants, industrial sumps, coolant tanks, and bodies of water. They are typically mounted on the edge of the liquid, and the skimming depth can be adjusted to match the specific application.   Applications:   Industrial Facilities: Used to remove oil and grease from coolant tanks, parts washers, and wastewater treatment processes. Environmental Remediation: Applied in spill response and cleanup operations to remove oil from water bodies. Marine Industry: Utilized on ships and offshore platforms to collect oil spills. Food Processing: Helps in removing oils and fats from food processing wastewater. Maintenance: Small belt-type oil skimmers are generally low-maintenance devices. Routine maintenance involves checking the belt for wear and tear, inspecting the motor and drive mechanism, and emptying the oil collection container when it fills up.   Benefits:   Efficient at removing floating oil and contaminants from the liquid surface. Cost-effective and relatively low-maintenance. Helps in compliance with environmental regulations. Reduces the need for chemical treatments to remove oil from water. Limitations:   Works best with liquid surfaces that are relatively calm, as waves or turbulence can disrupt skimming efficiency. May not be suitable for very thick or viscous oils. Requires a power source for the motor.

Brand Name : FILTERS23,filters23

Material : Stainless Steel

Finishing : Polished

Color : Grey, Silver

Application : Industrial

Size : 10inch, 11inch, 12inch

Certification : ISO

Feature : OIL SKIMMER

Type : Oil Skimmer,CNC tank oil skimmer

Certication : ISI Certified

Country of Origin : India

Warranty : 1 year

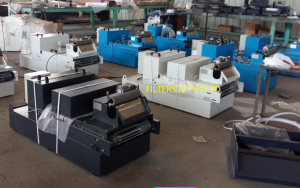

Gravity Paper band filter   Our organization has successfully expanded its business in market owing to the offered elevated quality array of Paper Band Filter. These filters are widely used for filtering contaminated coolant and cutting oil. Our offered filters are manufactured using premium grade material and sophisticated techniques under the visionary guidance of trained professionals as per the set industry       Recommended Industry and Workpiece   Coolant processing equipment  Liquid crystal and semiconductor parts  Non-ferrous metal and resin Coolant processing equipment  Construction machines and construction machine parts  Engine parts/Non-ferrous metal/SUS/Aluminum/Abrasive grain recovery Coolant processing equipment  Automotives/Automotive parts/Motorcycle parts  Engine parts/Non-ferrous metal/SUS/Aluminum/Abrasive grain recovery   SP series Paper Filter Separator to clean coolant using a filter paper Filter paper can be varied to allow passage of mean particle sizes ranging from 10μ to 95 μ   Applications   Various grinding machines Honing machines Superfinishing machines Cold rolling machines Wire drawing machines Washing machines Pelletizers Roll forming machines Secondary filtration for various cutting processes   Details Steel grinding Cast iron Advantages Ideal for oil-based coolants Unique high wall design in filter area prevents messy overflow while also allowing for improved filtration quality Fully automatic operation Options Cooler Magnetic separators Fine filter vessels Oil skimmers

Brand : filters23,filter23

Driven Type : Electric, Hydraulic

Color : Black, Grey, Light White

Condition : New

Automatic Grade : Automatic

Power : 1-3kw, 6-9kw, 9-12kw

Application : Filtering Coolant

Certification : CE Certified, ISO 9001:2008

Voltage : 110V, 220V, 380V, 440V

Type : Paper Band Filters,gravity paper band filter

Weight : 100-200kg, 200-300kg, 300-400kg

Warranty : 1year

Country of Origin : India

Gravity Band Filter   gravity band filter is an industrial filtration system designed to remove solid particles and contaminants from a liquid using the force of gravity. It is a passive filtration method that relies on the principle of gravity to separate solids from liquids. Gravity band filters are commonly used in various manufacturing processes, especially in applications where a continuous and automatic filtration system is required. Here's how a typical gravity band filter works:   Inlet: Contaminated liquid, such as coolant or wastewater, is fed into the gravity band filter system through an inlet.   Distribution Mechanism: The incoming liquid is evenly distributed over a wide, flat surface, typically made of a porous material like a filter cloth or filter media. This distribution mechanism ensures that the liquid spreads uniformly across the filter surface.   Gravity Filtration: Gravity plays a crucial role in the filtration process. As the liquid flows over the filter surface under the influence of gravity, solid particles and contaminants are separated from the liquid and are trapped on the surface of the filter media.   Solid Accumulation: Over time, as more and more solid particles are captured, they form a layer or cake on the surface of the filter media. This layer acts as an additional filtration barrier, helping to improve the efficiency of the filter.   Clean Liquid Collection: The filtered liquid, now free of solid contaminants, flows through the filter media and is collected in a reservoir or trough beneath the filter surface.   Continuous Operation: Gravity band filters are designed to operate continuously. As long as the incoming liquid contains contaminants, the filtration process continues, and the solid particles continue to accumulate on the filter media.   Periodic Maintenance: Eventually, the filter media becomes clogged with a significant amount of solid material. At this point, the filter may need to be stopped for maintenance. The solid cake is removed from the filter media, often using a scraper or other mechanical means. After cleaning, the filter can resume operation.   Gravity band filters offer several advantages:   Continuous Operation: They can operate continuously without the need for frequent replacement of filter media.   Low Energy Consumption: These filters typically require minimal energy to operate since they rely on gravity.   Effective Filtration: They are effective at removing solid particles from liquids and are suitable for various industrial applications.   Low Maintenance: While they do require periodic maintenance to remove the accumulated solids, this is usually less frequent compared to other filtration methods.   Gravity band filters are commonly used in industries such as wastewater treatment, food processing, chemical manufacturing, and mining. The choice of filter media and the design of the system can be tailored to specific application requirements, including particle size, flow rates, and filtration efficiency.

Brand : filters23,filters23

Driven Type : Electric

Color : Black, Light Green, Light White

Condition : New

Automatic Grade : Automatic

Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw

Application : Filtering Coolant

Certification : CE Certified, ISO 9001:2008

Voltage : 110V, 220V, 380V

Type : Paper Band Filters,gravity band filter

Weight : 100-200kg, 200-300kg, 300-400kg, 400-500kg

Warranty : 1 year

Country of Origin : India

A stainless steel body paper band filter is a type of industrial filtration system used to remove impurities and contaminants from liquids, often in manufacturing or processing applications. This filter consists of a stainless steel housing or body that encases a paper band or filter media. Here's how it typically works: 1.    Stainless Steel Housing: The filter housing is usually made of stainless steel, a durable and corrosion-resistant material. This housing contains all the components necessary for the filtration process. 2.    Paper Band Filter Media: Inside the housing, there is a continuous paper band or filter media. This paper band is typically porous and designed to trap particles and impurities from the liquid passing through it. The choice of paper band material and its porosity can vary depending on the specific filtration requirements. 3.    Liquid Inlet: The contaminated liquid enters the filter through an inlet. This liquid can be a coolant, lubricant, or any other industrial fluid that needs to be purified. 4.    Filtration Process: As the liquid flows through the paper band, the filter media traps and retains particles, debris, and contaminants, allowing only clean liquid to pass through. 5.    Clean Liquid Outlet: The purified liquid exits the filter through an outlet and is then directed to the desired process or application. 6.    Continuous Operation: Paper band filters are often designed for continuous operation. As the paper band accumulates contaminants, it may need to be periodically replaced or cleaned. This can be done by advancing the paper band through the filter, exposing a fresh section of the media. 7.    Maintenance: Regular maintenance, such as changing the paper band and cleaning the filter housing, is essential to ensure the filter continues to operate effectively. Stainless steel body paper band filters are commonly used in various industries, including metalworking, automotive manufacturing, machining, and other applications where maintaining the purity of industrial fluids is critical for quality and equipment longevity. They are valued for their durability, resistance to corrosion, and ability to handle high-flow rates while effectively removing contaminants from liquids.

Brand : FILTERS23,FILTERS23

Driven Type : Electric

Color : Blue, Light White

Condition : New

Automatic Grade : Automatic

Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw

Application : Filtering Coolant

Certification : CE Certified, ISO 9001:2008

Voltage : 110V, 220V, 380V, 440V

Type : Paper Band Filters,PAPER BAND

Weight : 100-200kg, 200-300kg, 300-400kg, 400-500kg

Warranty : 1year

Country of Origin : India

Material : STAINLESS STEEL

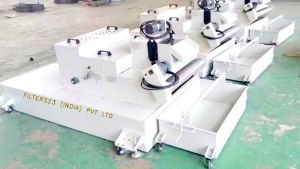

FILTERS23 INDIA`S paper band cum magnetic separator is a machine or device used in industrial settings to separate ferrous (iron-containing) particles from other materials, typically in a manufacturing or recycling process. This type of equipment combines two separate functions: paper band filtration and magnetic separation.   Paper Band Filtration: A paper band filtration system is used to filter out solid particles from a liquid or coolant. In industrial processes like metal machining or grinding, a coolant is often used to cool the cutting tools and remove debris. As the coolant circulates, it can become contaminated with metal shavings and other solid particles. The paper band filtration system uses a continuous loop of filter paper or a similar material to trap and remove these contaminants from the coolant, allowing the clean coolant to be reused.   Magnetic Separation: Magnetic separation is a method used to separate magnetic materials (such as iron and steel) from non-magnetic materials. In this process, a magnetic field is applied to a mixture of materials, causing the magnetic particles to be attracted to a magnetic surface or separator, while non-magnetic materials remain unaffected.   A paper band cum magnetic separator combines these two processes into a single machine. Here's how it typically works:   The contaminated coolant or liquid containing both solid particles and magnetic materials is fed into the system.   The paper band filtration system filters out the solid particles (including non-magnetic materials) from the liquid, as it passes through the filter paper.   Simultaneously, a magnetic separator within the machine uses a magnetic field to attract and separate the ferrous or magnetic particles from the remaining liquid.   The separated magnetic particles are collected in a separate container or bin, while the clean liquid is returned to the industrial process for reuse.   This type of equipment is commonly used in industries like metalworking, automotive manufacturing, and recycling where the separation of ferrous contaminants from liquids is essential for maintaining the quality of products and extending the life of cutting tools and equipment.   The specific design and operation of a paper band cum magnetic separator can vary depending on the manufacturer and the requirements of the industrial process it serves.

Brand Name : filters23,filters23

Driven Type : Electric, Hydraulic

Color : Blue

Condition : New

Automatic Grade : Automatic

Power : 1-3kw

Application : Filtering Coolant

Certification : CE Certified, ISO 9001:2008

Voltage : 110V, 220V, 380V, 440V

Type : Paper Band Filtration System,paper band filtration system

Weight : 100-200kg, 200-300kg, 300-400kg

Warranty : 1 year

Country of Origin : India,india

Material : ss

FILTERS23 INDIA`S paper band cum magnetic separator is a machine or device used in industrial settings to separate ferrous (iron-containing) particles from other materials, typically in a manufacturing or recycling process. This type of equipment combines two separate functions: paper band filtration and magnetic separation.   Paper Band Filtration: A paper band filtration system is used to filter out solid particles from a liquid or coolant. In industrial processes like metal machining or grinding, a coolant is often used to cool the cutting tools and remove debris. As the coolant circulates, it can become contaminated with metal shavings and other solid particles. The paper band filtration system uses a continuous loop of filter paper or a similar material to trap and remove these contaminants from the coolant, allowing the clean coolant to be reused.   Magnetic Separation: Magnetic separation is a method used to separate magnetic materials (such as iron and steel) from non-magnetic materials. In this process, a magnetic field is applied to a mixture of materials, causing the magnetic particles to be attracted to a magnetic surface or separator, while non-magnetic materials remain unaffected.   A paper band cum magnetic separator combines these two processes into a single machine. Here's how it typically works:   The contaminated coolant or liquid containing both solid particles and magnetic materials is fed into the system.   The paper band filtration system filters out the solid particles (including non-magnetic materials) from the liquid, as it passes through the filter paper.   Simultaneously, a magnetic separator within the machine uses a magnetic field to attract and separate the ferrous or magnetic particles from the remaining liquid.   The separated magnetic particles are collected in a separate container or bin, while the clean liquid is returned to the industrial process for reuse.   This type of equipment is commonly used in industries like metalworking, automotive manufacturing, and recycling where the separation of ferrous contaminants from liquids is essential for maintaining the quality of products and extending the life of cutting tools and equipment.   The specific design and operation of a paper band cum magnetic separator can vary depending on the manufacturer and the requirements of the industrial process it serves.

Brand : FILTERS23 (INDIA) PVT LTD,FILTERS23

Driven Type : Electric

Color : Blue

Condition : New

Automatic Grade : Automatic

Power : 3-6kw

Application : Filtering Coolant

Certification : CE Certified, ISO 9001:2008

Voltage : 220V, 380V, 440V

Type : Paper Band Filters,PAPER BAND CUM MEGNETIC SEPRATOR,PAPER BAND

Weight : 100-200kg, 200-300kg, 300-400kg

Warranty : 1 YEAR

Country of Origin : India,INDIA

Material : SS

Compact Band Filter is designed to filter ferrous and non-ferrous solid particles from liquid with high degree of purification using paper as filter media to enhance life of liquid and protect surface finish of products. Compact Band Filter works both with water base emulsion coolant as and oil(neat oil).MOC of Compact Band Filter is mild steel, SS-304 and SS-316.  The fluid with dirt is passed to compact band filter through inlet pipe.  Float actuated drives motion and indexes dirty filter paper. A compact band filtration system is a type of filtration system designed to efficiently remove impurities, particles, or contaminants from a fluid, typically a liquid, within a specific band or range of particle sizes. These systems are commonly used in industrial and commercial applications to ensure the quality and cleanliness of fluids in a space-saving and cost-effective manner.   General Description: Transfer pump is fitted on Dirty coolant tank to supply the coolant to thefiltration system. Operation logic of Transfer Pump is based on the Level Indicators on Dirty and Cleantanks. Once the filtration system is switched ON, Transfer pump is started based on high level in Dirty tank. Transfer Pump is cut off if coolant level goes low level in dirtytank or coolant level goes high level of cleantank. Compact Band Filter is placed on top of Clean coolant tank. Compact bandfilter uses paper filter to remove impurities from the coolant and filtered coolant gets collected in Cleantank. Supply Pump is mounted on the Clean tank of filtration system. Coolant fromClean tank is transferred to machine using thispump. This Supply Pump is started based on the signal from the machine. Supply Pump is switched off if coolant level goes low in cleantank.   Key features and components of a compact band filtration system may include:   Filter Media: The heart of any filtration system is the filter media, which can be made from various materials such as paper, fabric, metal, or synthetic materials. The choice of filter media depends on the type and size of contaminants to be removed.   Filter Element: Compact band filtration systems typically use filter elements that are designed to trap particles within a specific size range. These filter elements can come in different shapes and configurations, including cartridges, bags, or screens.   Inlet and Outlet Connections: These systems have inlet and outlet connections to allow the fluid to enter and exit the filtration system. These connections are typically designed for easy integration into existing pipelines or fluid systems. .   Control System: Advanced filtration systems may incorporate a control system to automate filtration processes, monitor filter performance, and trigger cleaning cycles as needed.   Size and Portability: Compact band filtration systems are designed to take up minimal space while still providing effective filtration. This is especially important in situations where space is limited or where mobility is required.   Application-Specific Design: These filtration systems can be customized to meet the specific requirements of different industries and applications, including oil and gas, automotive, food and beverage, pharmaceuticals, and more.   Maintenance and Serviceability: Easy access for maintenance and replacement of filter elements is a crucial consideration in the design of compact band filtration systems to minimize downtime and maintenance costs. Features : Suitable for fine filtration. Filtration capacity. Very low maintenance. Totally automatic operation. Very compact design for individual machine. Can be customized to suit your requirement. Filtration capacity: 10 lpm to 3000 lpm Advantages : Increase tool life Increase surface finish of components. Extending coolant life Reduces hazards waste Cleaner working environment Reduces machine down time Increased machine output.   Application:- Bearing industry. Auto component manufacturers. Automobile manufacturers.

Brand Name : FILTERS23 (INDIA) PVT LTD,filters23

Driven Type : Electric

Color : Blue, Grey, Light White

Condition : New

Automatic Grade : Automatic, Semi Automatic

Power : 9-12kw

Application : FILTERATION

Certification : CE Certified, ISO 9001:2008

Voltage : 110V, 220V, 380V, 440V

Type : Compact Band Filter,compact band filter

Weight : 100-200kg, 200-300kg, 300-400kg

Warranty : 1 year

After-Sales Service Provided : filter23

Country of Origin : India,india

Material : MS

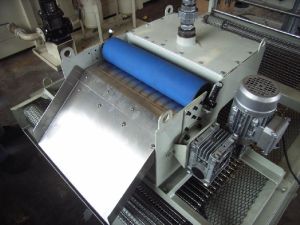

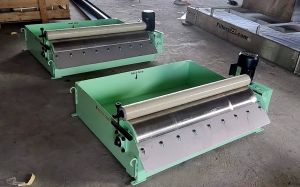

Filters23 India coolant magnetic separator is a device used in industrial settings to remove ferrous (iron-based) particles from liquid coolant or cutting fluid used in machining processes. These particles can be detrimental to machinery and tools, causing wear and tear and affecting the quality of the finished products. Coolant magnetic separators help maintain the cleanliness and effectiveness of the coolant by capturing and removing these ferrous contaminants.   Here's how a coolant magnetic separator typically works:   Installation: The separator is usually installed in the coolant circulation system of a machine tool, such as a grinding machine or a machining center. It can also be installed in standalone coolant tanks.   Magnetic Field: The separator contains one or more powerful magnets. As the coolant flows through the separator, the magnetic field attracts and captures ferrous particles from the coolant.   Particle Separation: The ferrous particles, such as iron shavings, metal chips, or other magnetic contaminants, are pulled out of the flowing coolant and held onto the magnetic surface or collection area within the separator.   Cleaned Coolant: The now-cleaned coolant exits the separator and can be recirculated back into the machining process.   Maintenance: Periodically, the magnetic separator needs to be cleaned and the collected ferrous particles removed. This maintenance ensures the continued efficiency of the separator.   Coolant magnetic separators are essential in industries like metalworking, automotive manufacturing, aerospace, and more, where precision machining and the quality of finished products are critical. By removing ferrous contaminants from the coolant, these separators help extend tool life, improve machining accuracy, and reduce machine maintenance and downtime.   There are various types and designs of coolant magnetic separators available, including permanent magnetic separators and electromagnetic separators. The choice of separator depends on factors like the size and type of contaminants in the coolant, the flow rate of the coolant, and the specific requirements of the machining process.

Finishing : Polished

Driven Type : Hydraulic

Shape : Rectangular

Color : White

Condition : New

Automatic Grade : Automatic

Power : 9-12kw

Power Source : Electric

Motor Power : in hz

Usage : Industrial

Certification : ISO 9001:2008

Voltage : 220V

Packaging Type : wooden

Size (mm) : require

Specialities : Rust Proof, Long Life

Dimension (LxWxH) : 385x180x285mm, 285x80x285mm, 585x280x485mm

Type : coolant magnetic seprator

Thickness : 50mm

Weight : 100-1000kg

Phase : Three Phase

Warranty : 1 Year

Country of Origin : India

Machine Structure : Horizontal

Reverse Rotation : No

Belts Width : 150mm, 200mm, 250mm

Filters23 India coolant magnetic separator is a device used in industrial settings to remove ferrous (iron-based) particles from liquid coolant or cutting fluid used in machining processes. These particles can be detrimental to machinery and tools, causing wear and tear and affecting the quality of the finished products. Coolant magnetic separators help maintain the cleanliness and effectiveness of the coolant by capturing and removing these ferrous contaminants.   Here's how a coolant magnetic separator typically works:   Installation: The separator is usually installed in the coolant circulation system of a machine tool, such as a grinding machine or a machining center. It can also be installed in standalone coolant tanks.   Magnetic Field: The separator contains one or more powerful magnets. As the coolant flows through the separator, the magnetic field attracts and captures ferrous particles from the coolant.   Particle Separation: The ferrous particles, such as iron shavings, metal chips, or other magnetic contaminants, are pulled out of the flowing coolant and held onto the magnetic surface or collection area within the separator.   Cleaned Coolant: The now-cleaned coolant exits the separator and can be recirculated back into the machining process.   Maintenance: Periodically, the magnetic separator needs to be cleaned and the collected ferrous particles removed. This maintenance ensures the continued efficiency of the separator.   Coolant magnetic separators are essential in industries like metalworking, automotive manufacturing, aerospace, and more, where precision machining and the quality of finished products are critical. By removing ferrous contaminants from the coolant, these separators help extend tool life, improve machining accuracy, and reduce machine maintenance and downtime.   There are various types and designs of coolant magnetic separators available, including permanent magnetic separators and electromagnetic separators. The choice of separator depends on factors like the size and type of contaminants in the coolant, the flow rate of the coolant, and the specific requirements of the machining process.

Warranty : 1 Year

Belts Width : 150mm, 200mm, 250mm, 300mm

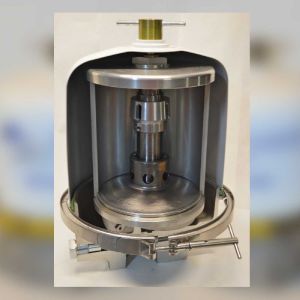

centrifugal filtration systems    A centrifugal filter replaces the gravitational force with the centrifugal force. Centrifugal filtration is a form of the process known as sedimentation, the separation of particles that naturally occurs due to gravity. A centrifugal filter replaces the gravitational force with the centrifugal force, which can be thousands of times stronger than the latter. Simply put, centrifugal filtration increases the rate at which the natural process occurs. A centrifugal filter spins the lube oil at a high rotational speed and separates the particulate from the liquid. The centrifugal filter forces the heavier solids to the outside of the separator bowl producing a firm sludge cake.   The use of rotating machinery is necessary for almost every industry. Although this equipment is common in various applications, there are still a vast number of opportunities that can increase performance, reduce maintenance downtime and increase the life of such equipment—ranging from steam turbines and diesel engines to the use of pumps and actuators. Within many of these systems is a lubrication oil which can be beneficial or detrimental to how long such equipment will stay in service. application  Honing Super finishing EDM applications Advantages Available in manual and automatic models Provide extremely fine filtration Options Coolers Magnetic separators Salient Features : No Filter Element No Replacement Cost Improved Product Finish Reduced Oil Consumption Extended Oil Change Period Reduced Machine downtime Reduced Storage & Disposal Cost of Waste Oil Reduced Pollution and Environmental

Country of Origin : India

Color : Blue

Condition : New

Automatic Grade : Semi Automatic

Filter Type : Centrifugal filter

Usage/Application : Lube Oil

Capacity : 1000 LPH (option available from 1000 LPH to 5000 LPH)

Flow Rate Lph : 1000 LPH

Rust proof : Yes

Performance Enhancing Features Magnetic force of the ferrite magnets and provides an effective pushing action once every revolution to help move swarf down the chute while forcing most of the coolant back into the coolant tank.   The Barnes unit is available in five standard and five rare earth models to accommodate a wide range of flow rates and machine configurations.   Additional information   Machining With Standard Magnets   Broaching    Gun Drilling   Hobbing   Milling Grinding with Standard & Rare Earth Magnets   Rough and Finish Grinders Centerless ID & OD Thru-feed   Hones   Lapping Machines   Creep Feed   Cylindrical Roll   Double Disc   Thread   Features   Powerful Permanent Ferrite Magnets Filter to 20 Microns Optional Rare Earth Magnets Filter to 10 Microns Lowest cost cleaning Bulk removal of ferrous material Rough grinding-chip making

Country of Origin : India

Voltage : 220V

Condition : New

Driven Type : Electric

Capacity : 100 LPM To 1200 LPM

Body Material : Stainless Steel

Driven Type : Electric

Power Type : AC

Application : Industrial

Type : Vacuum Band Filter

Country of Origin : India

Driven Type : Electric

Application : Filtering Coolant

Voltage : 220V

Type : Paper Band Filters

Country of Origin : India

Phase : 2

Driven Type : Electric

Automatic Grade : Automatic

Application : Filtering Coolant

Type : Magnetic Separator Paper Band Filter

Country of Origin : India

Frequency : 50

Material : Mild Steel

Operating Type : Automatic

Voltage : 220V

Type : Magnetic Coolant Filtration

Country of Origin : India
