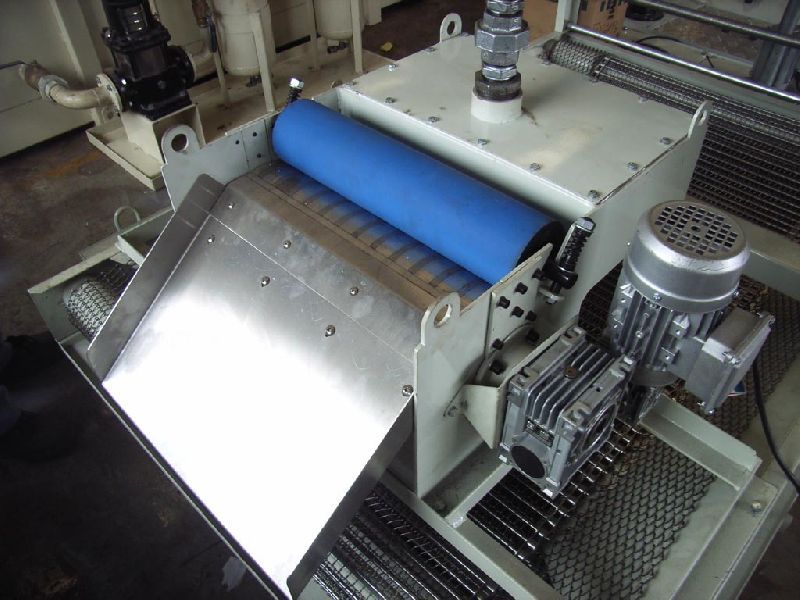

Coolant Magnetic Separator

Performance Enhancing Features

Magnetic force of the ferrite magnets and provides an effective pushing action once every revolution to help move swarf down the chute while forcing most of the coolant back into the coolant tank.

The Barnes unit is available in five standard and five rare earth models to accommodate a wide range of flow rates and machine configurations.

Additional information

Machining With Standard Magnets

Broaching

Gun Drilling

Hobbing

Milling

Grinding with Standard & Rare Earth Magnets

Rough and Finish Grinders

Centerless ID & OD

Thru-feed

Hones

Lapping Machines

Creep Feed

Cylindrical Roll

Double Disc

Thread

Features

Powerful Permanent Ferrite Magnets Filter to 20 Microns

Optional Rare Earth Magnets Filter to 10 Microns

Lowest cost cleaning

Bulk removal of ferrous material

Rough grinding-chip making
